SRPNT X3 Concrete Grey



• We're thrilled to unveil the culmination of two years of dedicated research, design, and hard work!!: introducing the all-new X3 - e-DIRT BIKE powered by Throne Cycles! Experience the electrifying power of 72 volts and 13,000 watts of pure power! A custom alloy frame crafted under 3000 lbs. of pressure, this bike promises an unparalleled adventure.

  Safety is always paramount, which is why it has two integrated kill switches and strategically placed lights for enhanced visibility, ensuring your rides are as safe as they are thrilling. Whether you're navigating rugged terrain or enjoying off-road trails, the X3 - e-DIRT BIKE delivers unmatched performance and excitement. New Industry levels!

  Embrace the thrill and be among the first to pre-order* your own. However, please note that while this bike offers unparalleled excitement, it's important to remember that it's not street-legal. Prepare to elevate your off-road experience like never before with the X3 - e-DIRT BIKE.

  MOTOR
  Motor Type:	PMSM
  Mounting Position:	Mid
  Weight / Motor External Diameter:	9.55kg / 155mm
  Motor Axial Length:	130mm
  Peak Efficiency:	98%
  Cooling Method:	Air-Cooled
  CONTROLLER
  Controller Type:	FOC
  Dimensions:	160mm x 142mm x 79mm
  Peak Efficiency:	98.50%
  Power Modes:	Eco, High, and Sport
  MOTOR POWER SYSTEM
  Rated Voltage:	72V (DC)
  Rated Torque / Peak Torque:	95115Nm
  Motor Shaft Output Torque @ 1000RPM:	460Nm
  Rated Rotation Speed:	5400rpm
  Peak Efficiency:	97%
  Range of Efficiency (≥80):	3Nm - 45Nm

  TRANSMISSION
  Gear Ratio:	13:51
  Transmission:	Motorcycle Chain & 428 Drive Chain
  Model:	German Continental Brand, 8M CXA
  ELECTRICAL COMPONENTS
  Horn:	CQC
  Battery:	72V 40AH Lithium Battery with 176 LG Cells
  Battery Life Time:	500 Cycles
  Battery Charge Level:	Integrated Battery LCD Display
  Charger:	9A
  Charging Time:	3.5 Hours
  USB Connection:	Type C

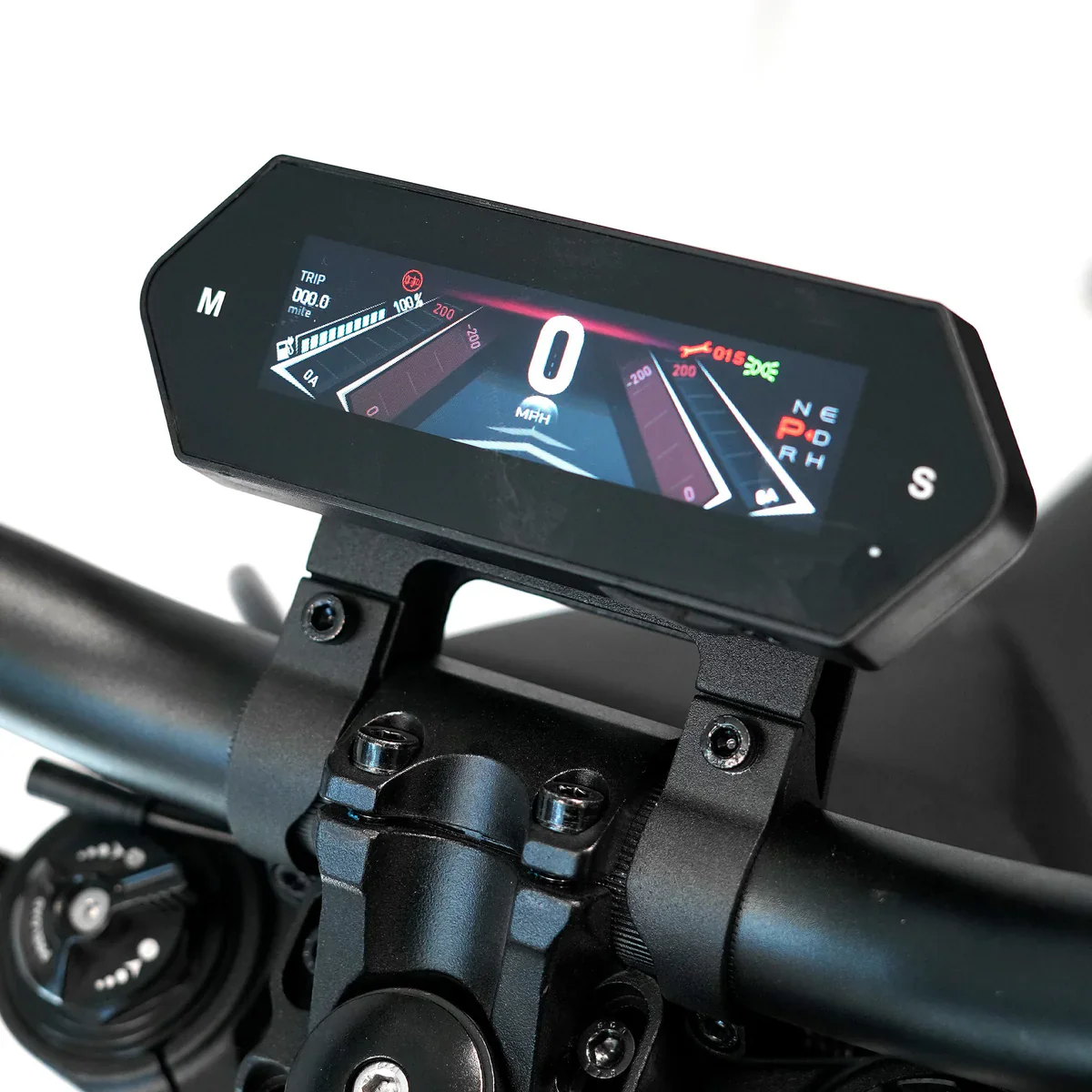

  Speedometer:	TFT
  LED Headlight & Rear Light:	Yes

  FRAME DETAILS
  Chassis - Swing Arm Material:	No.6061 T4&T6 Aluminum
  Chassis Construction Method:	Forged by 3000 Tons of Pressure
  Chassis Surface & Color Processing:	Baked Paint

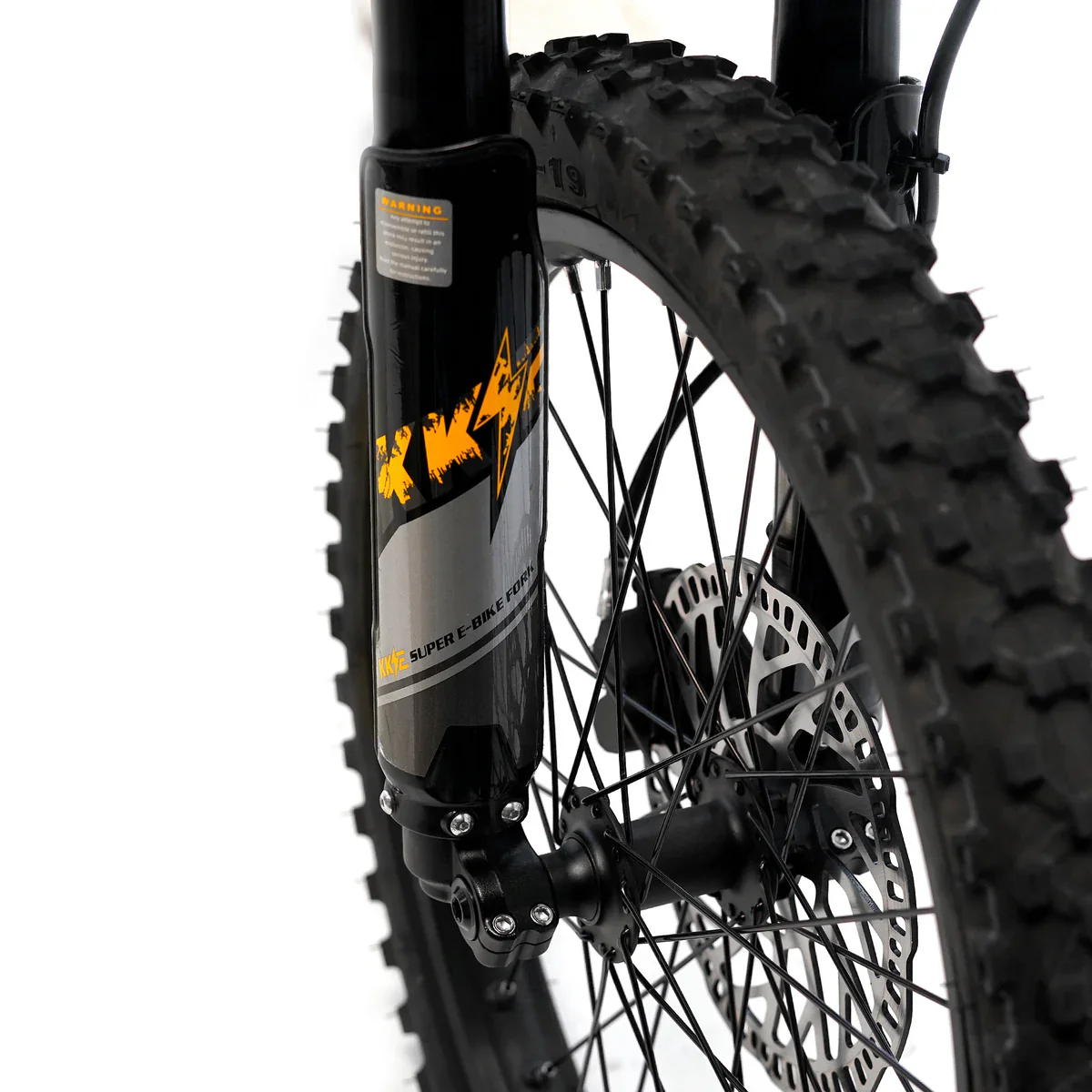

  Front Suspension:	Inverted Suspension Fork with 200mm Travel
  Rear Shock Absorber:	KKE Suspension Link System
  Wheel Type & Size:	Front/Rear :1.4-19 , 1.6-19 Alloy Hubs
  DIMENSIONS
  Ground Clearance:	270mm
  Wheelbase:	1250mm
  Seat Height:	85cm
  Vehicle Dimensions:	1880mmX805x1130mm
  DRIVE
  Top Speed:	90km/h
  Net Weight	73kg
  Rear Sprocket	51T
  Side Stand	Yes with Kill Switch
  Battery Usage	600 Uses
  Carry Capacity	320lb


  Oversize Shipping Fee – eMoto Products

Due to the size and weight of eMoto products, an oversize shipping fee applies to all orders containing these items. This fee covers the additional handling and freight costs required to safely deliver larger products. The oversize shipping fee is calculated and applied at checkout, please choose correct option to avoid delays.

⚠️ Important Notice: E-Bike Laws Vary by Location

-bike rules and age requirements are not the same everywhere. State, county, and city regulations may differ, so it’s important to check your local laws before riding.



What Is an OCEV?







Under California Bill No. 1271, some electric vehicles do not qualify as legal e-bikes and are classified as Out of Class Electric Vehicles (OCEVs). These include:





• Vehicles designed or modifiable to exceed 20 mph on motor power alone or go beyond 750 watts of motor output.
• Standard e-bikes that have been modified after purchase to go faster or use more power than legally allowed.

⚠️ These vehicles do not meet the legal definition of an e-bike and may require different licensing, registration, or safety gear.



Always confirm your vehicle complies with local laws to ensure a safe and legal ride.
